Dual pid temperature controller 4 lab furnace kiln oven

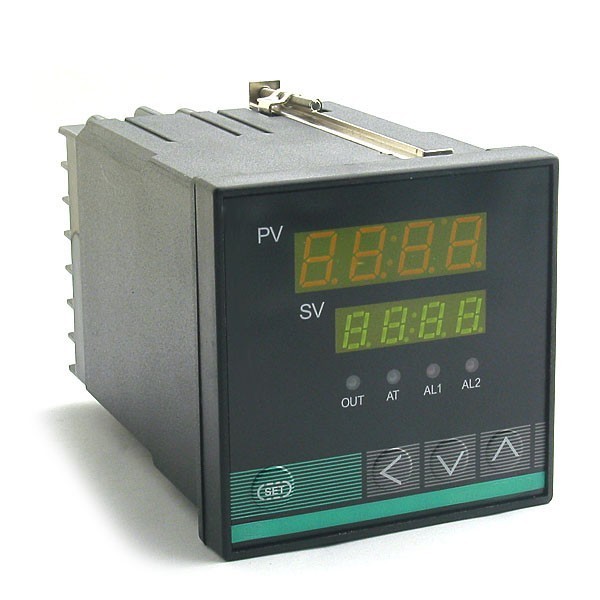

Dual PID Temperature Controller 4 Lab Furnace Kiln Oven
Ideal for industrial use in a wide range of industries:
* Analogue and digital multi filter wave
* Red and green 7 segment display measures value and set-up value
* Zero or full scale for software
Upper limit warning set-up value
Absolute value/deviation value
Lower limit warning set-up value
Auto command (0 off, 1 on)
Scale tape (2 state control = switch difference)
Key lock-up (0 off, 1 all keys)
* Compatible with K Type probes
* Temperature factor: effective to a deviation of 20 C 2 C within a 0 to 50 C range
* Annexed compensation error of cold terminal: 2 C or less
* Switch difference set-up for state-type controlled meters: 0.2 C to 100 C or 2 C to 100 C
* PID parameter set-up range: P:0 100, I:0-4320s, D:0 1200s
* Sensor error reversion range: 15 C
* Data protection switch off: 10 years
* Display type: red and green 7 segment display
* Dimensions: 11.5 x 7 x 7cm (4.3 x 2.6 x 2.6 )
The electronic temperature controller is brand new and boxed and supplied with instructions.
