A 10 multi-tester transciever item # AT004

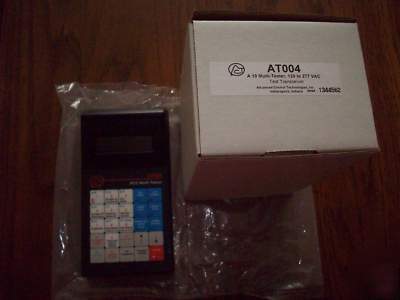

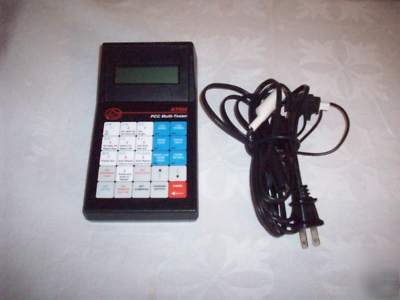

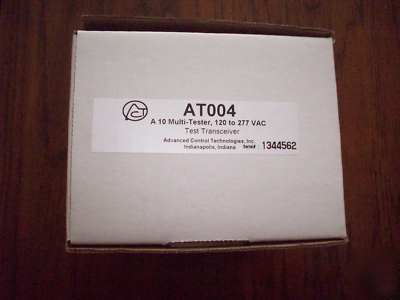

ACT MULTI-TESTER TRANSCEIVER ITEM # AT004
* GENERATE TEST SIGNALS TO VERIFY PROPER RECEIVER OPERATION
* X10 AND A10 PROGRAMMING TOOL
* DISPLAY SIGNAL STRENGTH ON LINE FROM OTHER TRANSMITTERS AND TWO WAY RECEIVERS ACT
* USE TO TEST POTENTIAL INSTALLATION SITES FOR POSSIBLE INSTALLATION PROBLEMS
* PINPOINT LOADS TO BE FILTERED BY LOGGING POWER GRID NOISE LEVELS (USER DEFINED TIME PERIODS UP TO 24 HOURS).

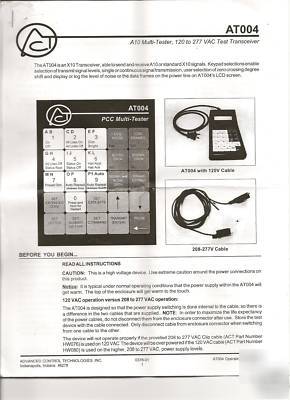

THE AT004 IS AN X10 TRANSCEIVER, ABLE TO SEND AND RECEIVE A10 ENHANCED OR STANDARD X10 SIGNALS. KEYPAD SELECTIONS ENABLE SELECTION OF TRANSMIT SIGNAL LEVELS, SINGLE OR CONTINUOUS SIGNAL TRANSMISSION, USER SELECTION OF ZERO CROSSING DEGREE SHIFT AND DISPLAY OR LOG THE LEVEL OF NOISE OR SIGNAL ON THE POWER LINE ON AT004'S LIQUID CRYSTAL DISPLAY (LCD).
* TRANSMITS X10 AND RECEIVES A10 AND STANDARD X10 (INCLUDING PRESET DIM) AND EXTENDED CODE
* DISPLAY NOISE LEVEL ON THE POWER LINE
* DISPLAYSSIGNAL LEVEL ON THE POWER LINE
* CAN LOG NOICE AND SIGNAL LEVELS OVER 24 HOUR PERIOD
* AUTO TRANSMIT MODE FOR SYSTEM TESTING
* ADJUSTABLE TRANSMIT VOLTAGE 33.3mv INCREMENTS
* TIME/DATE (24 HOUR FORMAT)
* SELECTABLE 0,30,60,90,120,150, TRANSMIT PULSE
* SHOWS RECEIVED X10 PACKETS AS ONE FRAME OR TWO FRAMES.. CAN BE USED TO DETERMINE WHETHER SIGNAL IS REPEATED OR ORIGINAL
* CAN BE USED AS P1 TEST TRANSMITTER
