30V, 28AMP lab power supply, lambda lgs-f-28-ovr-8222

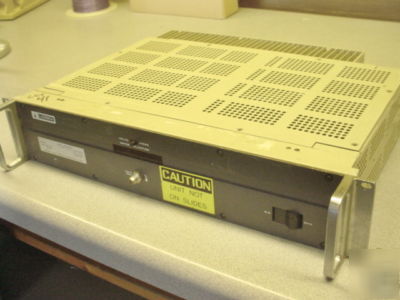

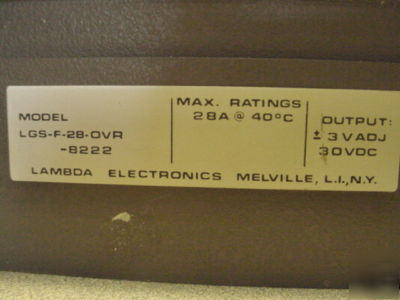

Lab Power Supply, Lambda LGS-F-28-OVR-8222 Serial # E96012
Output voltage spec 30V +/-3V ; Output voltage actually adjusts from 24.5-33V with potentiometer on front panel.
Max Output current- 28Amp @40C

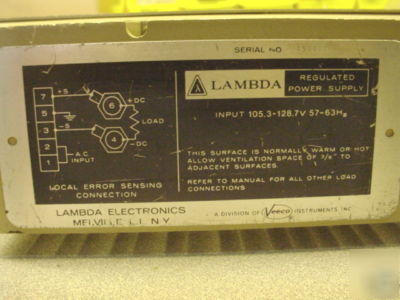

Input Voltage range- 105.3-128.7V @ 60Hz
Switch on front panel selects votage or current display.

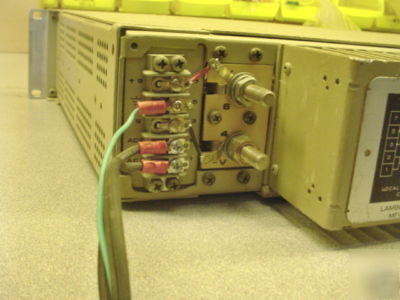

Remote sense on rear terminal block. Output connections- two 5/16"UNF studs on rear.
