Magnum generator 29KW john deere diesel 1 & 3 phas

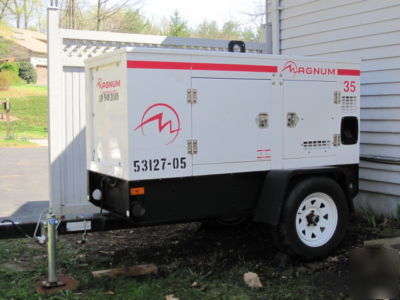

The MMG35 diesel generator provides reliable 3-phase power where and when you need it, in a highly mobile package.
Durable industrial powder coat finish
Stainless steel exterior hardware
Magnum Digital Controller (MDC)
Voltage regulation within +/- 1%
Minimum 25 hour full load run time
Air filter condition indicator
Lugs and lug box safety switch
External emergency stop switch
Detachable generator-set and trailer
Fuel tank integrated into generator-set
3 Phase - Standby kW (kVA) 29 (36)
3 Phase - Prime kW (kVA) 26 (33)
1 Phase - Standby kW (kVA) 26 (26)
1 Phase - Prime kW (kVA) 25 (25)
AC Voltage 1-phase 120, 139, 208, 220, 240, 277
AC Voltage 3-phase 208, 220, 440, 480
Power Factor 1.0 (1 Phase) / .8 (3 Phase)

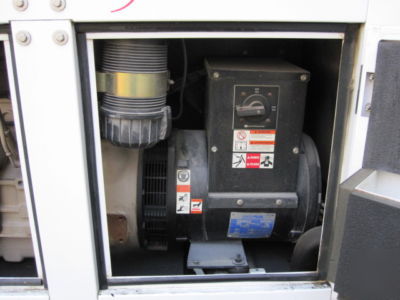

Generator - Brand / Type / Insulation Marathon / Brushless / H
Sound (dB(A) 23 ft @ prime) 68
Skid Mounted - L x W x H in (m) 83 x 35 x 53
Dry Weight lbs (kg) 2020 (916)
Operating Weight lbs (kg) 2475 (1123)
Trailer Mounted - L x W x H in (m) 132 x 57 x 67
Dry Weight lbs (kg) 2540 (1152)
Operating Weight lbs (kg) 2990 (1356)
Power - Prime @ 1800 rpm hp (kWm) 43 (32)
Displacement cubic in (L) 149 (2.4)
Fuel Consumption - Prime gph (Lph) 2.6 (9.8)
Battery - 12V 1 - 12V / 720 CCA Wet Cell
Main Circuit Breaker Size A 125
Voltage Selection 3 Position Switch (lockable)
120V - 20A GFI Duplex Outlets - qty 2
240V - 30A Twist Lock Outlets - qty N/A
240V - 50A Twist Lock Outlets - qty 2
Capacity - Axle Rating lbs (kg) 3500 (1588)
