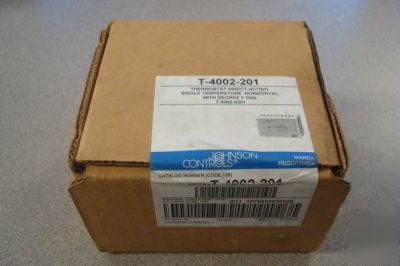

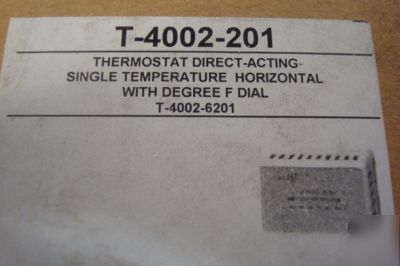

Factory sealed johnson controls t-4002-201 thermostat
This is a new surplus Johnson Controls pneumatic thermostat
Direct-acting, horizontal mounted high volume output, single temperature thermostat. Fahrenheit dial.
Sensitivity: Adjustable from 0.75 to 4.0 psig/ F (9 to 50 kPA/ C); Factory set at approx. 2.5 psig/ F (32 kPa/ C)
Flow capacity: 400 SCIM (107 mL/s)
Air consumption: 20 SCIM (5 mL/s)
Supply pressure: 13 to 25 psig (91 to 175 kPa); Nominal 20 psig (140 kPa)
Air connections: 2 (supply and output)
