Dc low 10U ohm/ resistance benchtop meter/tester,audio

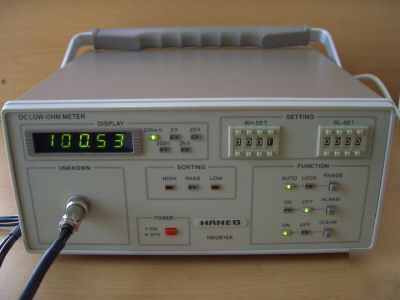

LOW-OHM / RESISTANCE BENCHTOP METER
High Accuracy and Stability !!!
Good Price / Performance Ratio !!!
. Wide Low Resistance Measuring Range:
. Employs LSI chip sets for control. Easy Operation with full function available;
. Applicable for measuring coil / transformer resistance/
cable resistance / switch, socket & connector contact resistance;
. Audio requirements where low ohms is needed;
. 5 terminals measuring method to elimniate the resistance effect from the test leads / contact;
. Preset measure range determines alarm function while over range;
. Selectable measure range mode : auto / manual;
. Display mode: 4 1/2 digits, 10 u ohms max resolution;
. Measure Range ( 10u ohm to 1.9999K ohms in 5 ranges ):
- Range 1: 200m ohm (10u to 199.99m ohms);
- Range 2: 2 ohm (100u to 1.9999 ohms );
- Range 3: 20 ohm ( 1m to 19.999 ohms );
- Range 4: 200 ohm (10m to 199.99 ohms );
- Range 5: 2k ohm (100m to 1.9999k ohms);
+/-0.2% +/-0.01% range value ( 20C +/-5C );
+/-0.002% +/-0.002% range value per degree C (0 to 15C and 25 to 40C );
. Sample rate : 8 times / sec;
. Preset range function ( activate while lock function on ):
Upper Limit : Dial switch set to upper limit;
Lower Limit : Dial switch set to lower limit;
Value > upper limit - light "HIGH" on;
Value < lower limit - light "LOW" on;
Value within preset range : light "PASS" on;
Buzzer : On while light "PASS" on. Disable buzzer allowable;
. Dimension: 410 x 310 x 125mm;
. Power Supply: 220v /110v +/-10%, 50/60Hz +/-5%;
. Accessories: 5 pins Test Clips / Power Cord / English user manual;
If the item damaged upon received, please inform immediately by e-mail within 5 days. After the investigation, we decide to the repair/replacement.
Don't hesitate to Ask if any inquiry.
