Cin-mila "sabre" 3-axis cnc vert mach center SVDP43

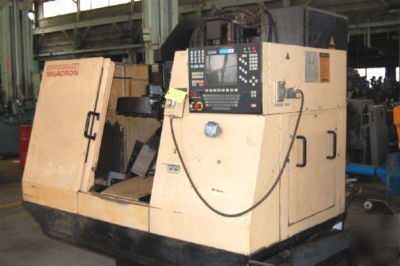

#750 CINCINNATI-MILACRON "SABRE"
New 1990, Serial No 7029A-89-0037. Model 750,
Cincinnati-Milacron Acramatic #850 CNC Control
Table Working Surface, W x L........... 17" x 34"
Table Load Capacity.................... 1000 LBS
X-Axis Table Longitudinal Travel....... 30"
Y-Axis Saddle In/Out Cross Travel...... 15"
Z-Axis Spindle-Head Vertical Travel.... 20"
Spindle-Center to Column, Maximum...... 16.5"
Spindle-Nose to Table-Top, Maximum..... 26.5"
Spindle Taper, V-Flange................ #40 CAT
Spindle Speeds, Range.................. 60 to 8000 RPM
X, Y & Z-Axis Feeds, Infinite Range.... .100 to 480 IPM
Rapid Traverse Rates, X, Y & Z-Axis'... 480 IPM
Floor Space Required, W x D............ 7'10" x 7'1"
Overall Height......................... 8'4"
Weight, Approximately.................. 8000 LBS
