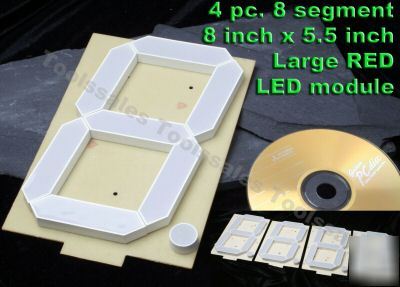

4PC 8" inch very large red 7 segment led display
Great for out door display. Scores or time display proejct.
each segment has 18 LED in serial(10)+parallel (4), 12V, ( DOT has 9 LED)
Board size: 142mm x 250mm ( 5.5" x 9.84")
Board terminal: A,F,G,E,Common Anode.D,C,B,DP
Segment LED voltage: 18.5V~19.5V
decimal Point LED voltage: 9-9,5V
For warranty parts and service:
Spare parts are available upon providing parts number,
All purchased are final, will replace defective product only.
Return package must be in the original packaging, everything must be in new condition. Missing part s or anything in original contact will not qualify for any refund.
Defective item can be exchanged within 7 days of receipt.
Replacement and refunds will not be processed until the return item received.
