1356 sq ft dce sintamatic pulse jet dust collector

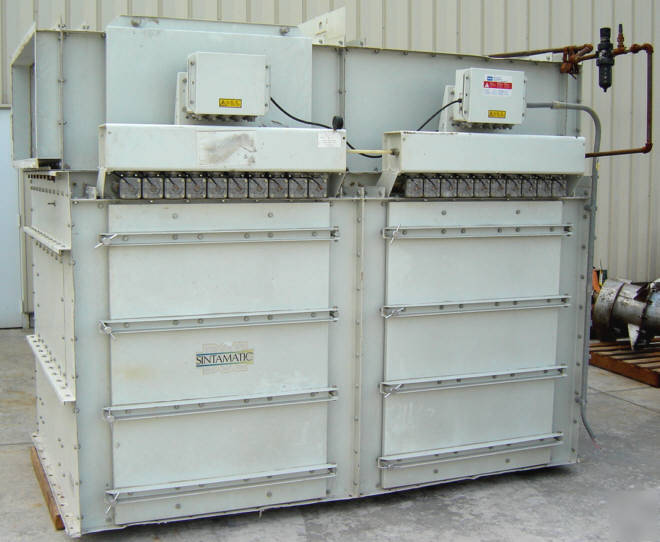

1356 SQ FT DCE SINTAMATIC PULSE JET DUST COLLECTOR
TYPE SC2B64. DCE JOB # 96-1309/22. PO# TEK-6053. TWO BANK DESIGN. EACH BANK HAS 10 FILTER ELEMENTS, PTFE BASED COATING ON A HIGH GRADE POROUS COMPOSITE AS ITS FILTRATION MEDIUM FORMING A RIGID SELF SUPPORTING ELEMENT OFFERING EXTEMELY HIGH FILTRATION EFFICIENCY. FOR A TOTAL OF 20 FILTER ELEMENTS. FILTER ELEMENT DIMENSIONS ARE 39" WIDE X 48" LONG. COMPLETE WITH PULSE JET HEADER, RIGHT ANGLE VALVES, & TIMER. 480 V / 3 PHASE / 60 HZ. 90 PSIG RECOMMENDED PRESSURE. 36" X 17" RECTANGULAR DIRTY AIR INLET. 47" X 20" RECTANGULAR CLEAN AIR OUTLET. OVERALL DIMENSIONS (NOT INCLUDING HOPPER) ARE 5'-3" W x 9' L x 87" H. HOPPER IS 79" TALL WITH 10" SQUARE OUTLET. AIR VOLUME REQUIRED FOR CLEANING AT 12 SECOND INTERVALS IS 16.0 CFM. VERY GOOD CONDITION.
