Soic LT1014DS quad precision op amp linear technology

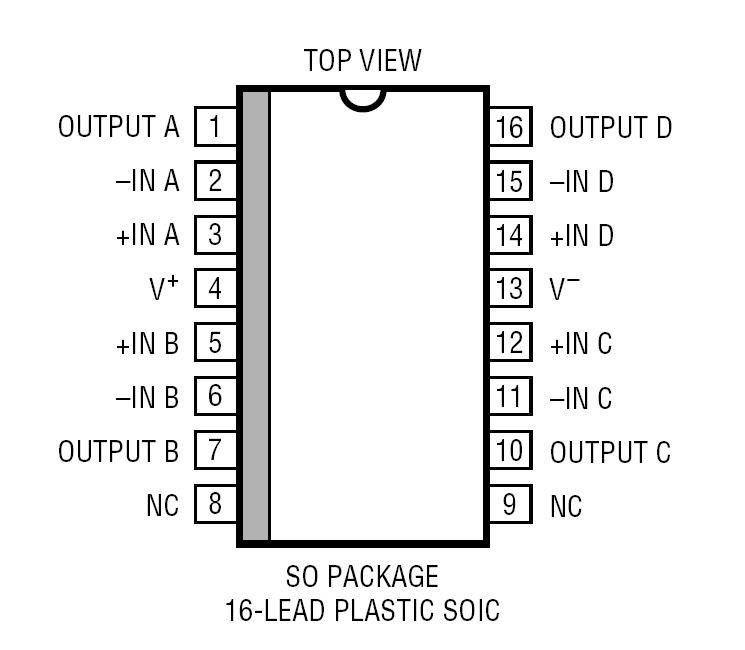

SOIC LT1014DS Quad Precision Op Amp Linear Technology
SOIC LT1014DS Quad Precision Op Amp Linear Technology - NOS
1014 is the first precision quad operational amplifier
which directly upgrades designs in the industry standard
14-pin DIP LM324/LM348/OP-11/4156 pin configuration.
It is no longer necessary to compromise specifications,
while saving board space and cost, as compared to single
The LT1014 s low offset voltage of 50
offset current of 0.15nA, gain of 8 million, common-mode
rejection of 117dB and power supply rejection of 120dB
qualify it as four truly precision operational amplifiers.
Particularly important is the low offset voltage, since no
offset null terminals are provided in the quad configuration.
Although supply current is only 350
a new output stage design sources and sinks in excess of
20mA of load current, while retaining high voltage gain.
