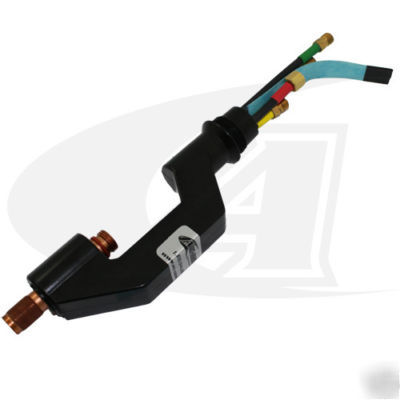

Pwm 4A plasma welding 180° "in-line" machine torch body
Machine Plasma Arc Welding Torch Body
Thermal Dynamics PWM 4A Plasma Arc Welding Torch
PWM 4A 180 "In-Line" Torch Body. PWM 4A Plasma Arc Welding
Performance Proven Replacement for Thermal Dynamics PWM 4A
Plasma Arc Welding Torch. Thermal Dynamics part number: 8-4054.
PWM 4A Plasma Torch Specifications:
180 In-Line Thermal Dynamics PWM 4A Machine Plasma Torch
* 180 Degree In-Line Head (Part No. 8-4054) Water Cooled
* Current Rating 200 Amps (DCSP)
* Coolant Requirements 8,000 BTU/hr (2017 kcal/hr) 1/2 gpm @50 psi (1.9 ipm @ 3.7 kg/cm2)
* Torch Body and Barrel 21" (.53m) Long
* Offset Head from Center Line 1-3/4" (44mm)
* Gear Rack Adjustment 11-1/4" (286mm) Min. to 19" (483mm) Max
Torch Body compatible with Thermal Dynamics PWM 4A Plasma Arc Welding Torches and Ultima 150 Plasma Arc Welding Systems.
PWM 4A Plasma Torch Exploded Parts View
