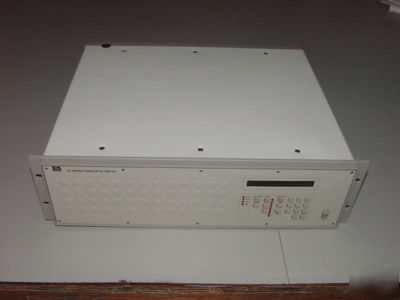

JDS Uniphase SC 2x3 Fiber Optic Switch
Operation of these switches is based upon JDS Uniphase's proven expanded beam lens technology, which utilizes a precision stepper-motor to align optical channels. The use of collimating lenses minimizes insertion loss and improves repeatability and performance. Internal temperature control of the switching mechanism ensures excellent operational stability.
This unit has the following applications:
* Fiberoptic component testing and measurement
* System Configuration: he E configuration allows any input to be connected to any output while other inputs/outputs are aligned to subsequent/adjacent channels. The switch is non-blocking in this mode and other inputs/outputs are aligned.
* Model Number: SC2E40034-17XF003SU
* Wavelength range: 1270-1670 nm
* Connector type: 3' SC\PC Fiber Pigtail
* Insertion Loss: 0.4 dB, Maximum 0.7 dB (1.5 dB)
* Return loss SM standard/Analog: >= 65 dB, 60/65 dB
* Polarization dependent loss SM: 0.02 dB, 0.05 dB
* Insertion loss stability: 0.03 dB, 0.05 dB
* Sequential switching: 0.003 dB, 0.005 dB
* Random switching: 0.01 dB, 0.025 dB
* Crosstalk (maximum) SM: - 80 dB
* Maximum input power (optical): 300 mW
* Control local and remote via GPIB and serial RS232 interfaces
