Holz-her 1424 triathlon 360 automatic edgebander 1996

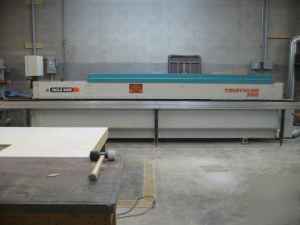

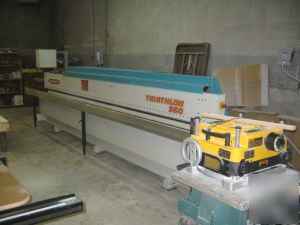

Holz-Her 1424 Triathlon 360 Automatic Edgebander 1996
A $65,000 VAlue! This "HOLZ-HER TRIATHLON" has 2 sets of "HD" Top & Bottom Trimmers, jump buffing & PLC Controls, for a lot less than NEW!
Max 1/2" (13mm) solid wood banding & 3mm PVC cap., 2-3/8"max. panel thickness and 5-1/2" min. panel length.

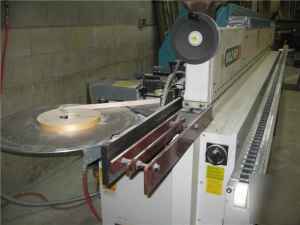

Equipped with: Granular glue system & quick melt feature, automatic magazine for coil, strip & solid edgebanding; HD guillotine for 3 flush to 0 - 15 bevel from operator panel; top & bottom flush trim unit (type 1962), 0.8HP - 18,000RPM Motor ea., HF - 300 Cy, bevels 0 - 15; super finish top & bottom fine/ radius trim (Type 1966), 0.8HP - 18,000RPM motor ea., tilts 0 - 15; all top & bottom trim motors come w/ SIKO digital readouts.
Open Space for 2 additional workstations.
Top & Bottom glue/surface scraper "1964".
Last Station: Top & bottom "jump" buffing (Type 1944K) 0.25HP - 3,600RPM motors ea., tilts 0 - 5 equipped with cotton wheels.
Variable feed speed 8 - 20RPM (26 - 67FPM), panel overhang beyond chain 35mm (1.38").

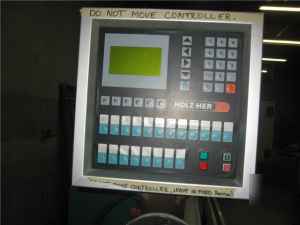

Complete with: Microprocessor for line control & glue temperature, 10KVA frequency changer, outboard panel support, and sound enclosure w/ interior lights over all milling units - MODEL "TRiathlon 360"
