Case D46615 tilt cylinder for 6 way blade 310G, 350

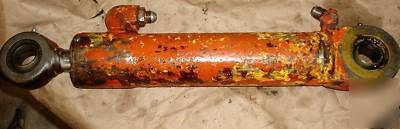

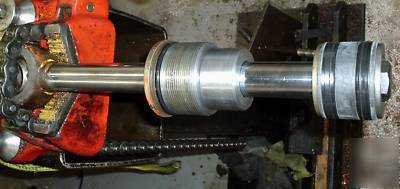

Used Case D46615 Tift Cylinder for 6 way blade fits 310G and 350 with Case power 6 way blade. Rod has some scratches, but does not affect performance, all new seals (see photo) & pressure tested in good working order. Also listed locally so availability is subject to prior sale.
Stroke is 7-1/2" (case lists as 7-9/16") cylinder is 1-1/4 rod x 2-1/2 bore ID. Pin centers are 18-1/2" closed 26" extended +/-1/16, spherials pin bushings both ends. May fit other case models.
If you have any questions email me.
