Atmel ATTINY2313-20PU ATTINY2313 8-bit microcontroller
Utilizes the AVR RISC Architecture
AVR High-performance and Low-power RISC Architecture
Up to 20 MIPS Throughput at 20 MHz
Data and Non-volatile Program and Data Memories
2K Bytes of In-System Self Programmable Flash Endurance 10,000 Write/Erase Cycles
128 Bytes In-System Programmable EEPROM
Programming Lock for Flash Program and EEPROM Data Security
One 8-bit Timer/Counter with Separate Prescaler and Compare Mode
One 16-bit Timer/Counter with Separate Prescaler, Compare and Capture Modes
USI Universal Serial Interface
Low-power Idle, Power-down, and Standby Modes
20-pin PDIP, 20-pin SOIC, 20-pad QFN/MLF
ATtiny2313: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

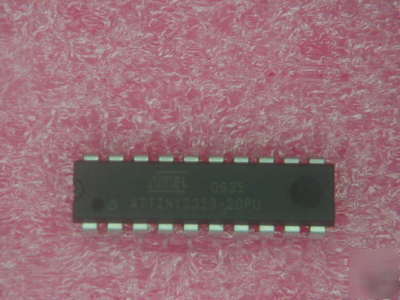

The device is a 20-pin Dual-In-Line package.
