2715 carlton model 3A radial arm drill

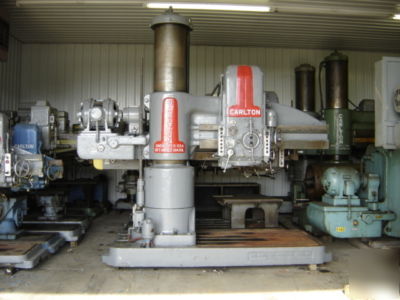

CARLTON MODEL 3A RADIAL ARM DRILL
Arm length and column base 5 x 17
Face of column to center of spindle, min/max 13 / 60
Spindle radius, min/max 27 / 73
Spindle to base, min/max 16 7/8 / 72
Working surface of base, width x length 50 x 65
Bearing of head on arm 21 7/8
Maximum height over head 11 3
Spindle diameter (Driving dia) 3 3/16
Traverse of arm on column 37 1/8
Drills to center of circle 10 0
Feeds and tap leads (18) .004 to .125
Spindle speeds (36) 10-1000 rpm
Machine is equipped with a box table.
