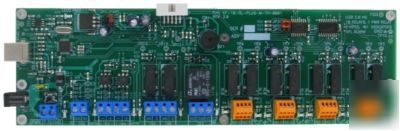

Usb to I2C w/ 10 reed relays, pwr relay, 2 opto inputs
8-Channel Power Relay Output Board
I2C-Relay8, part of the I2C-Pak Family
Easy-to-Use with our stand-alone interface program, LabView drivers also available
Use with a controller from the I2C-Pak family, or your own custom design
* Stackable & Expandable - up to 8 I2C-Relay8s can be independently monitored at once on the same I2C communications bus
* 8 power relay output channels
* Each channel relay is rated for 10A @ 24VDC / 5A @ 120VAC / 5A @ 28VDC resistive
* Screw-down terminal blocks for each output channel
* 2 I2C communication ports for easy daisy-chaining of up to 8 units
* Can use 2 IDC 10-pin female-female ribbon cables
* Can use wires to on-board screw-down terminal blocks
* Indication LEDs show the status of each output channel
* Power input 7.5-12VDC / 300-600mA
* On-board regulation of main power
* Dimensions: 4.50 x 9.9 inches (64 x 252 mm)
* Works easily with your custom I2C-enabled controller, or with our line of controllers
Figure 1: IDC connector pinout
Figure 2: Stand-alone interface program
Other members of the I2C-Pak family:
* I2C-Opto8: 8 optically isolated inputs
* I2C-USB-Relay10: USB-operated controller with 10 signal relay, 2 power relay outputs, 2 opto-isolated inputs
* I2C-USB-Tester: Programmable stand-alone controller with status indicators and push-buttons for manual monitoring and manipulation of I2C-Pak modules
* I2C-Remote: Programmable web-accessible controller
* Remote I/O expander for I2C bus
For additional information, technical details, and electronic updates of manuals and any applicable software or drivers, please visit our home page at LightSoSoft.com.
For information on Linux drivers, please visit this page.FTDI's page..
8-Channel Power Relay Board Via I2C Protocol
This unit provides fast, easy, and expandable control of up to 8 modules through 2-wire I2C serial communication. Ideal for use in industrial and commercial systems. LabVIEW drivers available.
* 8 Power Relays Form-C (24 VDC @ 10 Amps)
* 8 LED status indicators (Green)
* 8 Terminal blocks Screw-down 3-PIn (14-22 awg)
* Supports I2C "standard" mode (100Kbps)
* Speeds ranging from 1KHz to 100KHz
* Inter-bit and inter-byte clock stretching
* Daisy-chaining, expansion up to 8 modules
* Address-selectable; Jumpers (8 addresses)
* I2C accessible via terminal blocks TB19/TB20 or J2
* LabVIEW Ready: Drivers available for version 7.0 and greater
* Power supply output: 5V @ 500mA power supply
* Short-circuit protection: Resettable PTC fuse
* Optional USB interface: USB-I2C-10-Relay module
* Power indicator: LED Green
* Input power: J1 or TB17 (Polarity-protected)
* Dimensions: 64 mm W x 252 mm L (2.5" X 9.9")
* Relative humidity: 10-80% non-condensing
* Operating temperature: 0 to 60C (32 to 140F)
* Storage temperature: -20 to 70C (-4 to 175F)
* I2C-Opto8: 8 opto-isolated input module
* I2C-Relay8: 8 power relay output module
We constantly strive to improve functionality in all of our products. What you receive may look slightly different from what you see depicted in this listing, but all prior functinality will be maintained.
The contents of this listing are subject to change without notice and are not guaranteed for accuracy.
This product is not designed for military, medical or other applications where lives are at stake.
