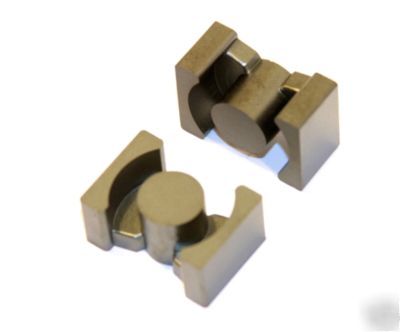

Transformer cores, pq-26 power ferrite, 450MT bsat (X6)
Qty: 3 complete transformers (6 halves)
Permeability = 4000, B(sat) = 450 mT
Dimensions: 27.3mm x 19mm x 12.4mm each half.
Inductance Index (AL): 5290 nH/N^2
Each pair of cores is matched and marked from the factory, so the facing surfaces mate perfectly.
Al value: 5308 nH / T^2 +/- 25%,
average of 8 samples from the lot, taken with an Agilent 4275A LCR Analyzer,
Note: Depending on construction, a 26mm size transformer can produce 200-400W max power in an SMPS application. Maximizing factors will include a full bridge topology, 100KHz+ operating frequency, and use of triple-insulated winding wire to optimize transformer performance.
Example schematic of 1000W Switching power supply
Web site showing how to build a 1KW SMPS
