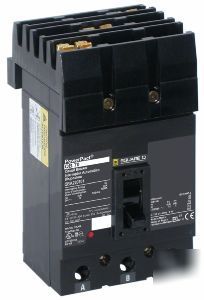

Square d QGA221254 circuit breaker
MOLDED CASE CIRCUIT BREAKER 240V 125A
Voltage Rating: 240VacCircuit Breaker Type: StandardFor Use With: I-Line Panelboards and SwitchboardsMarketing Trade Name: PowerpactFrame Type: Q-FrameFixed Trip: Hold: 1200A - Trip: 2400AAmpere Rating: 125AGeneral Application: Provides overload and short circuit protectionApprovals: UL Listed - CSA Certified - IEC RatedMounting Type: I-Line Plug-OnWeight: 4 PoundsNumber of Poles: 2-PolePhase Connection: BCInterrupting Rating: 65kA@240VacTerminal Type: I-Line Connection (ON end) - Lugs (OFF end)Wire Size: #4 to 300 AWG/kcmil(Al/Cu)Depth: 3.93 InchesHeight: 6.47 InchesWidth: 4.50 Inches
Was installed but not used. We had to swap out the breaker since it was the wrong one in the panel. Our loss is your gain.
