Rt/duroid® 5870 high frequency laminates 18X12 lot 10

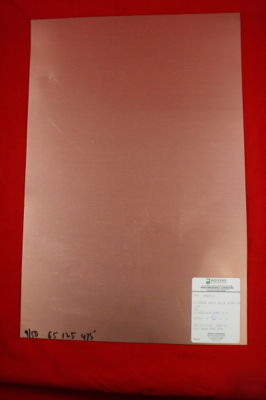

RT/duroid 5870 High Frequency Laminates 18x12 Lot 10

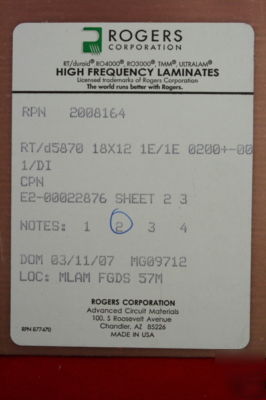

Rogers RT/duroid 5870 High Frequency Laminates
Rogers RT/duroid 5870 and 5880 families of high frequency laminates are PTFE composites reinforced with glass microfibers. These microfibers are randomly oriented to maximize the benefits of fiber reinforcement in the direction most valuable to circuit producers and in the final circuit applications.
The dielectric constant of these high frequency laminates is the lowest of all products, and low dielectric loss make them well suited for high frequency/ broad band applications where dispersion and losses need to be minimized. Because of their extremely low water absorption characteristics, RT/duroid 5870 and 5880 are ideal for applications in high moisture environments.
These advanced circuit materials are easily cut, sheared and machined to shape, and resistant to all solvents and reagents normally used in etching printed circuits or plating edges and holes. They have the lowest electrical loss of any reinforced PTFE material, low moisture absorption, are isotropic, and have uniform electrical properties over frequency. Rogers RT/duroid 5870 and 5880 high frequency laminates are used in circuitry for commercial airline telephones, microstrip and stripline circuits, millimeter wave applications, military radar systems, missile guidance systems, point-to-point digital radio antennas and others.
* Lowest electrical loss of any reinforced PTFE material
* Uniform electrical properties over frequency
* Excellent chemical resistance, including solvents and reagents used in printing and plating
* Ease of fabrication cutting, shearing, machining
* RoHS compliant, environment friendly
