Keyence rd-50R high speed sampling rate controller

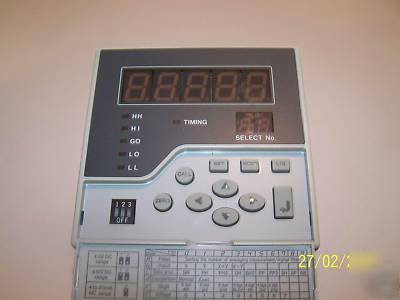

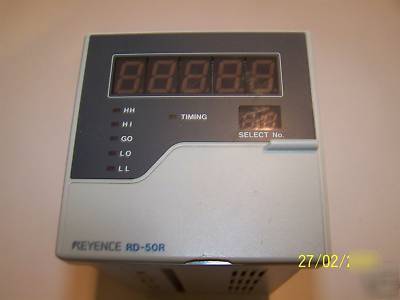

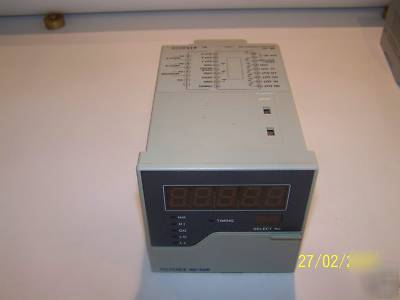

What we have here is A Keyence RD-50R Analog Laser Displacement Sensor Controller. This item is in very good cosmetic and working condition. I have included some information from there web-page for your convenience, If you have any other questions please feel free to ask.
* Measurement function = DC voltage measurement, DC current measurement
* Measuring range = 5 VDC, 10 VDC, 4 to 20 mA DC (selectable)
* Display range = -19999 to +39999
* Measuring accuracy 0.03% of F.S. (at 5 VDC range), 0.03% of F.S. (at 10 VDC range),
0.05% of F.S. (at 4 to 20 mA DC range)
* Input = Impedance 1 M Ohm for voltage input and 350 Ohm for current input, System Single-ended, Number of inputs 2
* Display Character = 7 segment 3 color LED
* Control input = Synchronous, Hold-reset, Auto-zero, External setting: NPN open-collector or non-voltage contact signal
* Control output = Tolerance setting: 8 programs selectable (4 levels per program), Signal: 5 x NPN open-collector (HH, HI, GO, LO, LL) : 100 mA (40 V max.), Response time: 1 ms (when average number 1), Off-delay time: 60 ms (ON/OFF selectable)
* Analog Voltage Output = Voltage 10 VDC, Impedance : 100 Ohms, Response time: 1 ms (when average number 1, Requires 1.5 ms every second during self-compensation sequence to prevent temperature fluctuations.)
* Interface = Data output and control input through RS-232C
* Operates on 24 VDC 10%, Current consumption 240 mA max.
