Greenlee 687 (2) & greenlee 647 pulling setup

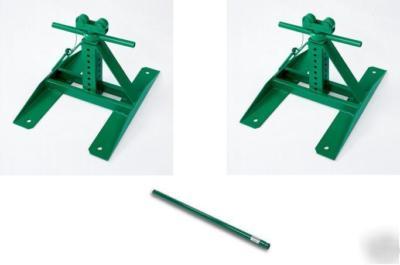

You get 2 X Greenlee Model No. 687 Cable Reel Jacks and a Greenlee Model No. 647 Reel Spindle with each purchase. See individual description below:
GREENLEE MODEL NO. 687 SPECIFICATIONS:
Reel Stand 13" - 28" (330.2 - 711.2 mm) Cat #: 687 UPC #: 17076 Spec: Size: 14-1/2" x 20" (368.3 x 508 mm) base; 28" (711.2 mm) maximum height Capacity: 2,500 lbs. (1134 kg) each, 28" - 56" (711.2 x 1422 mm) reel diameter Weight: 25 lbs. (11.3 kg) Description: Wide welded steel base for added stability. Roller bearings fit in the spindle groove to keep the spindle in place and turning freely. Two stands and a spindle are required for a complete set-up.
GREENLEE MODEL NO. 647 SPECIFICATIONS:
Spindle for 687 Reel Stand Cat #: 647 UPC #: 15321 Spec: Size: 2-3/8" diameter x 62" (60.3 x 1575mm) Capacity: 5,000 lbs. (2268 kg) 59"(1150 mm) between grooves Weight: 42 lbs. (19.06 kg) Description: Tempered steel with grooves to fit reel stand rollers
