Tektronix TAP1500 1.5 ghz active probe,tekvpi interface
Tektronix TAP1500 1.5 GHz Active Probe, w/TekVPI Probe Interface (Manufactured around April 2006)
Limited Time Offer: Accessory Kit (020-2066-02) Included!!!

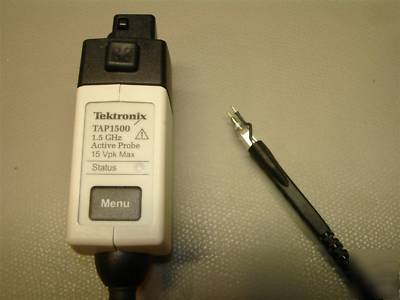

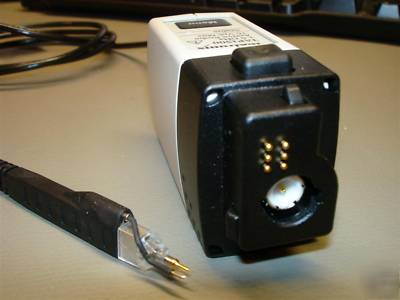

* 1 X Tektronix TAP1500 1.5 GHz Active Probe, w/TekVPI Probe Interface in ESD bag & packed w/bubbles.

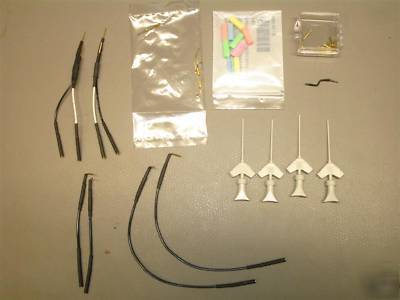

* 1 X Tektronix Accessory Kit (020-2066-02).
* Mfg. date around April 2006.
* Does not include any other documentation like calibration certificate, accessories, cables or software.
* -8 V to +8 V Input Dynamic Range
* -10 V to +10 VDC Input Offset Range
Versatile Mechanical Performance:
* Small Compact Probe Head for Probing Small Geometry Circuit Elements
* Connects & Powered Directly to DPO7000 and DPO/MSO4000 Series Oscilloscopes Using the TekVPI Probe Interface
* High-speed Digital Systems Design
* Component Design and Characterization
* Manufacturing Engineering and Test
* Signals with Voltage Swings up to 16 Vp-p

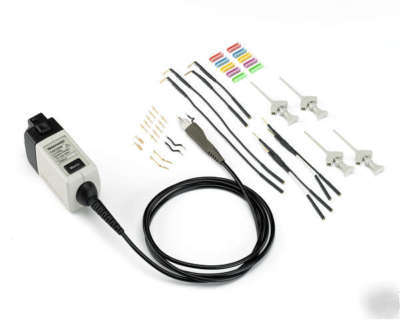

TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today s digital system designs. Specifically designed for use and direct connection to the TekVPI probe interface used on Tektronix' new DPO7000 and DPO/MSO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:
* Lower DUT loading effects with 1 pF input capacitance and 1 M input resistance
* Versatile DUT connectivity for attaching to small SMDs
* Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO/MSO4000 Series Oscilloscope models, up to 1 GHz
Datasheet: http://www2.tek.com/cmsreplive/psrep/13421/51W_19043_2_2009.10.30.17.00.40_13421_EN.pdf
Manual: http://www2.tek.com/cmsreplive/marep/10275/071180900_2008.09.24.11.10.25_10275_EN.pdf
