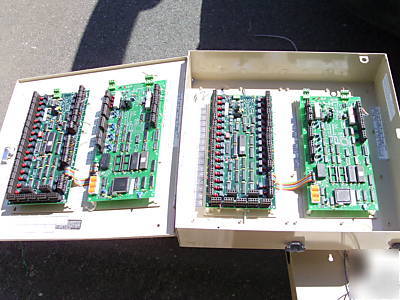

Sielox ac-600 threshold terminal controller & ac-460
I also have a PDF files that were e-mailed from Sielox that have more information on these items.
The AC-600 Threshold terminal controller incorporates 16-bit technology with real-time operations and has a proven track record in the access control industry. Compatible with the Pinnacle software, the AC-600 supervises all access control decisions and alarm detection. Each AC-600 controller has a standard memory capacity of 4,000 cardholders. Memory is upgradeable in two increments of 20,000 or 50,000 users. The AC-600 controller is compatible with a wide range of card reader technologies.
Key features of the AC-600 Controller include:
* Support for two readers per controller
* Two auxiliary Wiegand ports
* 48-hour battery backup ensures data integrity
* Two dedicated door contacts and request-to-exit devices
* Two user-definable voltage-free alarm contacts
* Four states on input status (secure, active, cut and short)
The AC-460 and AC-460E 16-bit I/O expansion units increase input/output capacity for the AC-600 Threshold terminal controller. This expansion unit shares the intelligence of the terminal controller's memory and uses the same supervision scheme. The AC-460 adds 14 inputs and 14 outputs to the two inputs and two outputs provided on every terminal controller. The AC-460E allows for 30 outputs for point control or elevator floor selection.
Key features of the AC-460/460E I/O Expansion Unit include:
* Additional outputs: standard SPDT dry contact relays
* Units can be mounted inside terminal controller enclosure
* Inputs and outputs can be linked through terminal controller configurations
