New 5 channel portable pc usb 2.0 oscilloscope+probe+cd
5 Channel USB Oscilloscope Portable With Cable PC-Based Software and probe
It's view signal voltages wherever you are with this easily portable 5 channel oscilloscope which plugs into your PC's USB port and making this an ideal unit for both field and lab work.
2.it is Used with electronic teaching equipment.
Signal input: BNC connection with universal oscillograph probe.
Frequency measurement range: 0Hz - 50KHz
DIV array: Horizontal 16DIV * vertical 10DIV
Adjustable voltage range: 10mV/DIV - 100mV/DIV
Max measuring voltage: 800MV, 8V when probe is X10
Voltage measurement error: 2.5%
Vertical baseline adjustable range:6DIV
Time domain adjustable range:100uS/DIV - 8192S/DIV
Data record and save capacity:8388608*5
Max data record and save time:93 hours
Examine and repair apparatus and appliances
2.The portable oscilloscope is easily potable and takes its power directly from the USB port.
No batteries or other external power supply is required.
a. 5 channel input and synchronised display
b. Measure range automatically with 4 available modes
c. Input capture (trigger) function
d. Any channel may be set as the source of capture (trigger) signal
e. Either rising or falling edge can be set to capture (trigger) signal
f. Adjustable capture (trigger) signal level
g.Saves data on hard disk and system will automatically summon data when started

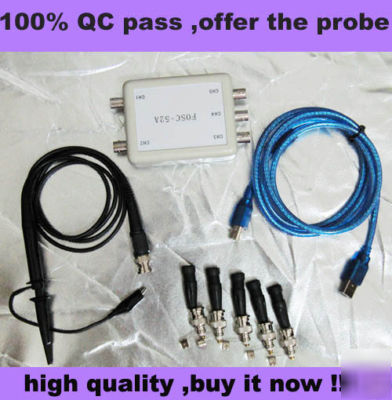

1 x 5 Channel USB Oscilloscope Portable PC-Based Software
