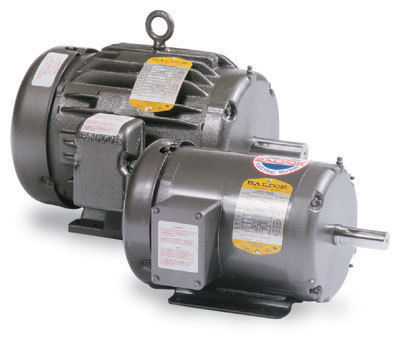

New 10HP baldor motor
SEE SPECS THIS MOTOR USUALLY LISTS FOR $915.00 Specifications: M3714T CATALOG NUMBER: M3714T FL AMPS: 28-27/13.5 208V AMPS: - BEARING-DRIVE-END: 6307 BEARING-OPP-DRIVE-END: 6206 DESIGN CODE: A DOE-CODE: 010A FL EFFICIENCY: 89.5 ENCLOSURE: TEFC FRAME: 215T HERTZ: 60 INSULATION-CLASS: F KVA-CODE: K SPEED [rpm]: 1770 OUTPUT [hp]: 10 PHASE: 3 POWER-FACTOR: 77 RATING: 40C AMB-CONT SERIAL-NUMBER: - SERVICE FACTOR: 1.15 SPEC. NUMBER: 37G813S275H1 VOLTAGE: 208-230/460
