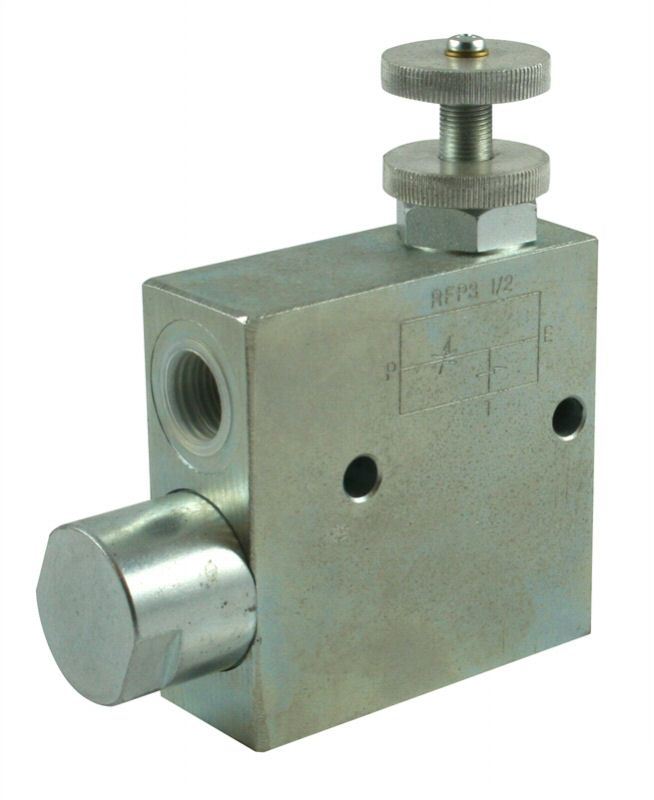

Hydraulic 3 port flow control excess to tank 1/2" bsp
Hydraulic 3 Port Flow Control Excess To Tank 1/2" bsp
1/2" 3 PORT FLOW CONTROL VALVE WITH EXCESS BACK TO TANK - V1120
* Max adjusted flow 50 l/min
Applications: Connect E to the pressure and P to the line where flow adjustment is needed. Connect T to the tank. To adjust inlet pressure in P screw in or out, hand wheel, after loosening the locknut.
