Commercial kitchen ventilation upblast exhaust fan

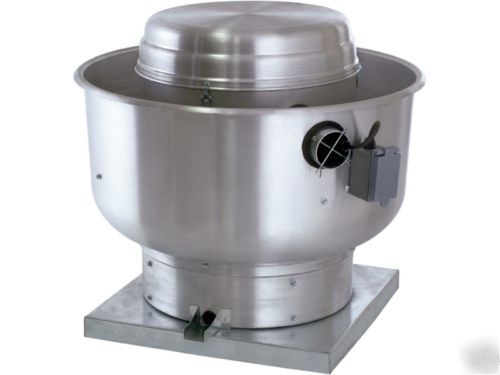

Commercial Kitchen Ventilation Upblast Exhaust Fan1500 CFM Direct Drive
VXD50 High Speed Direct Drive Centrifugal Upblast Exhaust Fanwith speed control (single phase only), disconnect switch and 13-3/4" wheel.
Exhaust Fan handles 1500 CFM @ -0.625" wc. Fan runs at 1446 RPM.Exhaust Motor: 0.500 HP, 1 Phase 115 V, 8.1 FLA, ODP (Open Drip Proof) Included Grease Cup Box Dimensions: 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA)
Construction Features- Housing constructed of heavy gauge aluminum- Centrifugal backward inclined, non-overloading wheel Weatherproof safety disconnect switch- Grease spout welded to housing- Vibration isolators- Continuous duty, thermal protected, permanently lubricated, direct drive motor- Forces fresh air through motor to ensure long motor life- Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)- Corrosion resistant fasteners- Thermal overload protection- High heat operation (400 F)- Rated for restaurant and general ventilation applications- Grease classification testedSelected Options: Grease Cup for kitchen-duty centrifugal exhaust fans, Box Dimensions 15-3/4 L X 5-1/16 W X 3-3/4 H (18 GA.)
