Allen-bradley 802T-b oiltight top push rod limit switch

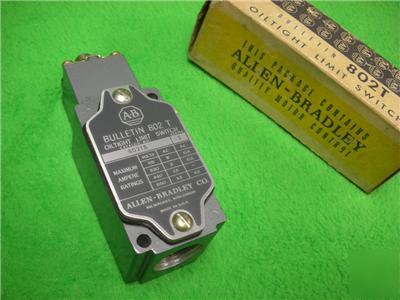

ALLEN-BRADLEY 802T-B OILTIGHT TOP PUSH ROD LIMIT SWITCH
with Top Push Rod Operator Head
This listing is for new old stock in its original AB box. It is about 4-1/2" x 1-5/8" x 1-3/4" overall including normal state of spring return push rod head Z-13949. Max Operating Force: 15.6N (3.5lb), Max Operating Travel: 1.9mm (0.075"), Max Travel: 5.1mm (,202"), Max Reset Travel: 0.8mm (0.030"). Mounting shaft holes are approx 2-5/8" apart on center diagonally. Threaded bore is 3/4" inner diameter.
Visit here for specifications: http:// /catalogs/sensors/catalognumberpdf/ch5/5-47_5-65.pdf
