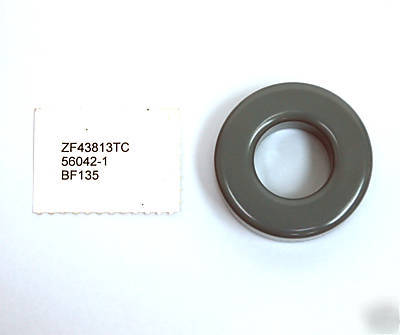

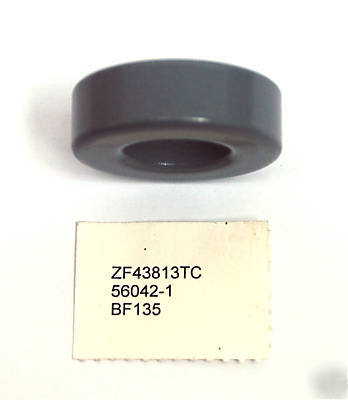

2 magnetics ferrite toroid core 3813 usa ZF43813TC gray
Ae=114.2mm^2, Le=82.9mm, Ve=9462mm^3
Core Losses 1.9W(200mW/cm^3) @ 25Khz, 200mT,100C
Dimension : 38.1x19.0x12.7mm, DoxDixH
( I test one : 20 turns=2.45mH, Z=1.538Khz @100Kz )

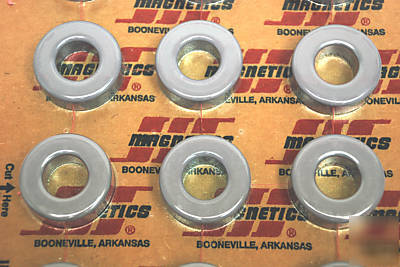

made by Magnetics Booneville,Arkansas (AR) USA
