New lincoln ranger 250 gxt welder generator K2382-4

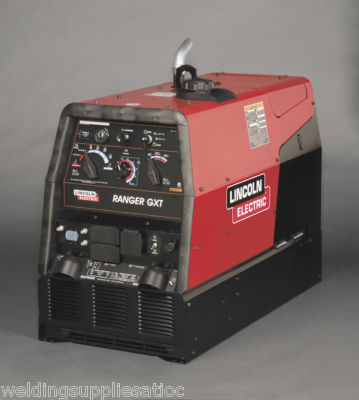

BRAND NEW LINCOLN RANGER 250 GXT AC/DC WELDER GENERATOR (K2382-4)
XTra Performance! XTra Power! XTra Protection!
K2382-4 Ranger 250 GXT (w/electric Fuel Pump)LIST PRICE 4261.00
Why settle for less, when you can get more? The Ranger 250 GXT has all of the Xtras you need for construction and maintenance work. This Ranger delivers XTra welding performance with 250 amps for AC or DC stick and wire welding. And, it's remote-ready for extended amperage control or AC TIG welding on aluminum with Lincoln's optional TIG module.
The Ranger 250 GXT generates XTra power, up to 11,000 watts peak, for lights, grinders and high amperage equipment such as Lincoln's Pro-Cut 55 plasma cutter. With the exclusive Lincoln enclosed case, you get XTra protection and XTra quiet operation. With the Ranger GXT, you get XTra value, without paying more.
* Rated 250 amps/25 volts for AC, DC and CV. All rated outputs at 100% duty cycle 104F (40C).
* Smooth AC/DC welding output for a broad range of stick electrodes, such as Lincoln Excalibur 7018 MR (AWS E7018) and Fleetweld 5P+ (AWS E6010). Also capable of MIG, flux-cored, and TIG welding.
* Remote ready! 6-pin connector and local/remote switch for remote control operation. Also for AC/DC TIG Module use with foot or hand Amptrol.
* Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling. Helps you virtually eliminate running low on fuel during critical jobs.
* 11,000 Watts Peak Single-Phase AC Generator Power
- Most peak power in its class.
- Use peak power for motor starting.
* 10,000 Watts Continuous Single-Phase AC Generator Power
- Most continuous power in its class.
- For high capacity needs such as a back-up generator, powering a plasma cutter or tig welder and much more..
- For lights, a grinder or other power tools.
* Engine doors provide protection and easy service access.
* Lower noise than partially-enclosed and unenclosed welders of comparable size 100.7dB (Lwa). Listen for yourself and hear the difference!
* Rugged Reliability Rangers have been subjected to an extensive testing program to ensure reliable operation in a wide variety of environmental conditions.
* Three-year Lincoln warranty on welder (engine is warranted separately by the manufacturer).
Dimensions (in) H x W x D : 36.2 x 21.5 x 42.3
Dimensions (mm) H x W x D : 920 x 546 x 1073
Stick TIG MIG Flux-Cored Gouging
Small Two-Wheel Welder Trailer
TIG Module Control Cable Extension
LN-25 w/Contactor and Gas Solenoid
Drive Roll Kit - .068-3/32" (1.7-2.4mm) Cored Wire
Magnum 300 Gun Package 15 ft 035-045
Drive Roll Kit - 1/16" (1.6mm) Cored Wire
