Kantech entrapass kt-300-512K KT300512K door controller
Manufacturer: Kantech Model/Part #: KT-300-512K (512K Memory)

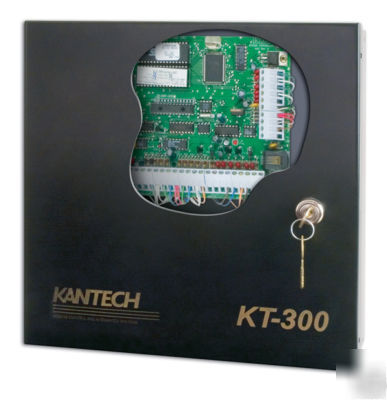

Kantech KT-300-512K Door Controller Panel (provides two doors of control)
Contact Surveillent for a complete "System" quote with everything you will need. This quote will also include discounts.
The KT-300 Door Controller is the most powerful and scalable door controller Kantech offers.
One controller supports up to two readers, installed on two separate doors or on a single door controlling both entry and exit. Each controller is linked to the others in the system using a "RS-485" communication bus providing for control of up to a million doors depending on the software you choose.
Built-in Combus expansion means you can add relay, input, and output modules to connect HVAC systems, elevators, motion detectors, and more. You can also add an LCD monitor to view time and date information.
* Controls two doors and easily links to a network
* Update the firmware directly from system workstation
* Fast, up to 115,200 baud
* Ready to go, no dip switches or jumpers to set
* Interfaces with an external alarm system
* Supervises battery conditions and reports low battery/no battery status to the system
* Automatic trouble reporting
* All power outputs are individually protected against short circuits and surges by a self-resetting PTC
* Choice of two memory capacities, 128K or 512K
