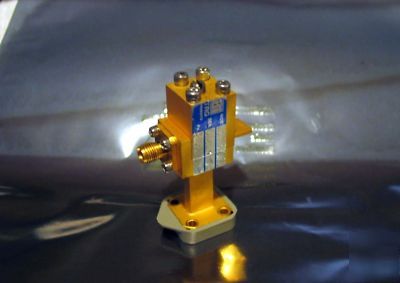

Trg alpha 922AC09AP harmonic mixer 33 to 50 ghz
922 series harmonic mixers are used to downconvert millimeter wave signals using a Schottky barrier mixer diode and a Diplexer circuit to separate the local oscillator, and IF paths. Measurements can be made by mixing the harmonic of the LO with the desired RF signal and observing the resulting IF. Designed for use with spectrum analyzers such as the HP 8566B and the HP 8569B, the 922 series harmonic mixers are used to extend the operating range of spectrum analyzers and other commercial test equipment. The mixers feature separate LO output and IF input ports with a standard triplexer circuit.
* Amplifier: 30dB IF amplifier
