Scope Meter Oscilloscope Digital Multimeter UT81B USB
If you're a professional system maintainer, repairer or troubleshooter you can't do your job without a multimeter and this highly accurate meter which comes with test leads and USB interface cable will enable you to diagnose problems in the motors, switches and controls of a vast variety of appliances.
The large LCD display is easy to read and is backlit, allowing for reading in dark workshops. The central dial has various positions allowing you to choose which is appropriate for the measurement you want to take, making this an essential piece of equipment for general maintenance.
* Meter automatically selects the best range when in multimeter mode
* Audible alarm when resistance readings are below threshold
* Measures signal on/off time in %
* Display updates 2 - 3 times per second
* 10 screen and setup memory
* Displays polarity, overload and low battery
* USB is optically isolated to ensure safety
* Takes 9 different measurements
* Easy-to-read, large, backlit LCD screen
* Tough unit with protective rubber casing
This is a professional quality instrument, designed for use by technicians and DIY-ers who need accurate and reliable readings. The digital multimeter has a wide range of measurement capabilities and a sturdy body which is protected by a bright red rubber casing.
* Display: 160 x 160 monochrome LCD with 3999 max reading
* Fused protection for mA input terminal: F0.5A/250V, 5x20mm
* Fused protection for 10A input terminal: F10AH/250V, 5x20mm
* Compliant: IEC 61010 CAT II 1000V, CAT III 600V over voltage and double insulation standard
* Operating temperature: 0 C ~ 50 C (32 F ~ 104 F)
* Storage temperature: -10 C ~ 50 C (14 F ~ 22 F)
* Relative humidity: 75% @ 0 C ~ 40 C; 0% @ -10 C ~ 50 C
* Dimensions: 10 x 20 x 5cm (4 x 8 x 2")
* Screen dimensions: 6 x 6cm (2.3 x 2.3")
* Weight including battery: 525g
* Power: X4 1.5V (R6) batteries or power adapter
* Power adapter input: 230V -50Hz, 100mA
* Power adapter output: 6V-450mA, 2.7VA
100ns/div ~ 5 sec/div (1-2-5)
AC Voltage (under multimeter mode):
A good silicon junction drops between 0.5V and 08.V
Alarm sounds when test resistance is 10
Alarm doesn't sound when test resistance is >1001

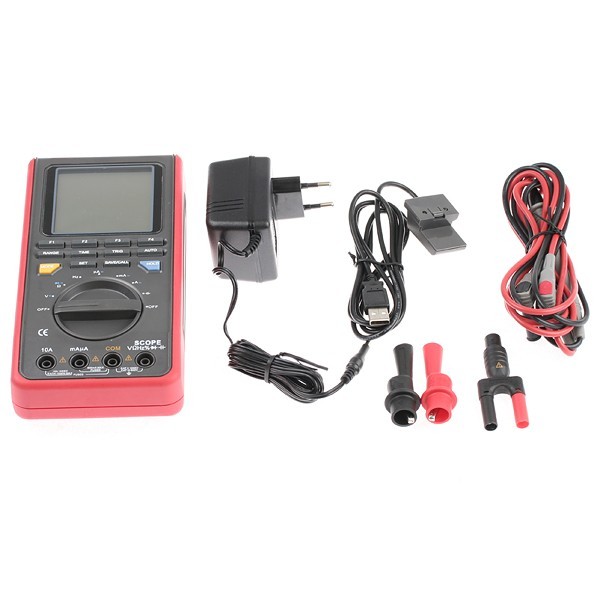

The digital multimeter with is brand new, boxed and complete with:
* CD-ROM containing installation guide and PC interface software
