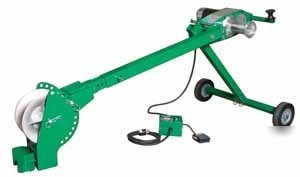

New greenlee ultra tugger 4 cable puller UT4 warranty
Maximum Pulling Force: High Speed 2,000 lbs. (909 kg) Low Speed 4,000 lbs. (1,818 kg) Continuous Pulling Force: Low Speed 3,000 lbs. (1,364 kg) High Pulling Speeds: No Load 26 fpm(8 mpm) 2,000 lbs. (909 kg) 20 fpm (6 mpm) Low Pulling Speeds: No Load 13 fpm (4 mpm) 2,000 lbs. (909 kg) 10 fpm (3 mpm) Pulling Rope: 9/16' diameter double braided composite (16,000 lbs. minimum breaking strength) Conduit Size: 2' to 4' Weight: 175 lbs. (80kg) Drive Motor: 1-1/4 hp, 120 VAC, 60 Hz Electrical Plug: 120 V, 15 Amp Force Gauge: Standard Foot Switch: Standard Standard Boom Extension: 8' (2.4 m) maximum Optional Long Boom Extension: 12' (3.6 m) maximum
* Quick Latch System (no loose parts)
* Equipped with Pull Force Gauge and Foot Switch
* Designed with key safety features
You may contact us @ 1-(***)-821-4927 Good Luck!
