Metal bellows loadlock connector high vacuum

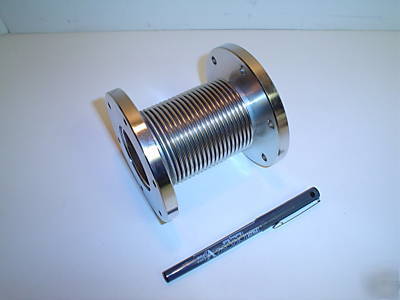

This is a New out of package stainless steel metal bellows. The clear hole through is 1.75 diameter. The flanges are the same and are 4 OD X 0.35 thickness. It has 6 holes equally spaced on 3.375 bolt circle diameter. These holes are 0.263 diameter. Free standing length is 3.9 and it will easily compress to 2.9 . This is a perfect bellows for adding manipulator tools to be moved in a Vacuum or pressure chamber. Also this can be utilized for enclosing delicate or precise instruments within a chamber.
