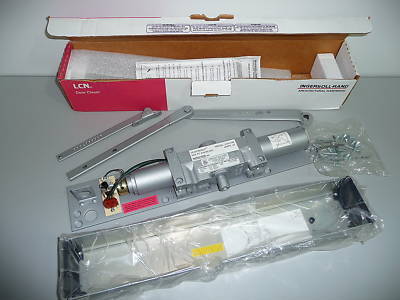

Lcn 4410 me electronic door closer-aluminum finish
is a heavy-duty, electrically controlled closer/holder designed to provide infinitely adjustable hold-open for fire and smoke barrier doors. Door is held open until current interruption releases mechanism and the door closes. Single lever (track) arm closer is specifically designed for interior doors. Cylinder functions and installation accessories meet virtually all life safety requirements.
This series is UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15. Conforms to life safety code, NFPA 101.
Cylinder Designed for interior doors to 4 0 W (1219mm)
Functions as full rack and pinion door closer when hold-open is not engaged or current is interrupted with Swing-Free arm engaged
Top jamb mount - right swing push side or right swing pull side
Concealed or exposed electrical connections
Built-in On/Off switch controls hold-open function
Interfaces with fire alarm systems. Consult factory
Silver standard powder coated finish
Tested and certified under ANSI Standard A156.4, grade one
All-weather fluid eliminates seasonal adjustments
Optional hold-open bypass feature
