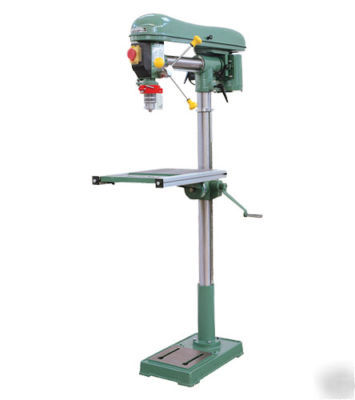

General int 75-550 radial arm drill press
Versatile design with variable swing up to 31 7/8 , tilting head up to 30 left or right with easy to read angle scale.
Table swivels 360 for operations either on or off the table.
Table tilts 45 left and right.
Table extension provides additional support for longer / larger work pieces.
See-through chuck guard included.
8 5/8 (220 mm) to 31 7/8 (810 mm)
11 3/4 x 11 3/4 (300 x 300 mm)
Maximum table size (w/extension)
11 3/4 x 15 3/4 (300 x 400 mm)
295, 440, 585, 800, 870,1000, 2100, 2680,3580 RPM
11 3/4 x 19 1/2 (300 x 495 mm)
