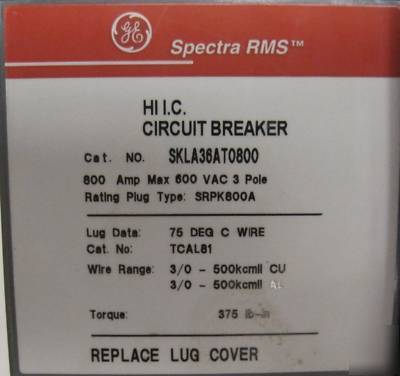

Ge spectra rms 800A circuit breaker SKLA36AT0800

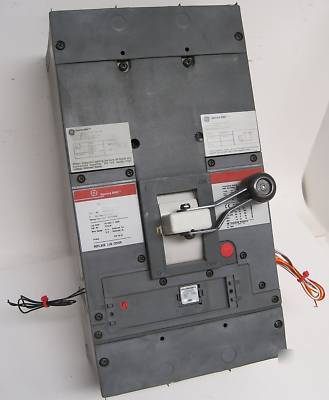

Item Title: Spectra RMS Molded Case Circuit Breaker
Spectra RMS Molded Case Circuit Breakers have a digital, solid state, RMS sensing trip system with field installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous with tracking short-time is standard on all frames. The trip system uses digital sampling to determine the RMS value of sinusoidal and non-sinusoidal currents. Suitable for reverse feed.
Voltage Rating: 600VAC Max.
Continuous Load Rating: Standard

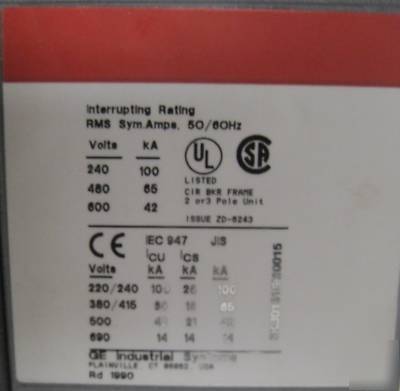

Interrupting Ratings: 240V - 100kA / 480V - 65kA / 600V - 42kA
Adjustable Trip Setting Range: 2440 - 8705A

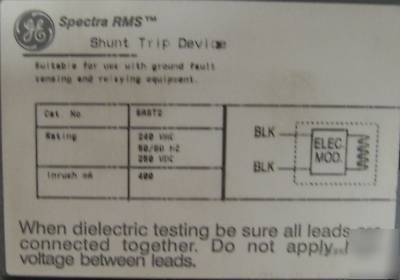

Shunt Voltage Rating: 240VAC / 250VDC Max.
Shunt Current Rating: 400A Inrush / 5.0A Continuous

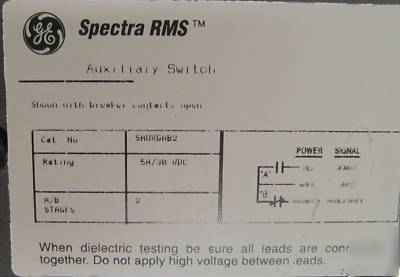

Switch Plate Rating: 0.5A @ 30VDC (Gold-Plated)
Number of Switch Elements: 2 (form C)
Condition: Pulled from a working environment and in great condition!
