Anritsu MW9070B sm fiber mini otdr MW0972B MW9076B vfl
* Option 01: Built-in 3.5-inch FDD
* Anritsu MW0972B SingleMode Module 1310nm & 1550nm
* EXFO FLS-235B Pocket Pal VFL w/ Manual On CD-ROM
* Hard Copy Operation Manual
* Hard Copy Serial Interface Operation Manual

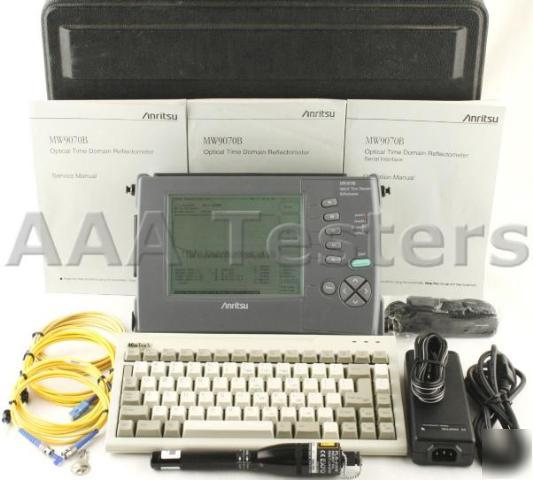

Anritsu MW9070B mini-OTDR MainFrame With MW0972B SingleMode 1310nm/1550nm Module
Option 01: Built-in 3.5-inch FDD
Includes EXFO FLS-235B Pocket Pal (VFL) Visual Fault Locater ($500.00 value)
The MW9070B is a high-performance mini-OTDR for installation and maintenance of subscriber fiber optic lines and other fiber optic cables. It automatically detects the positions of faults in the cable and displays an event table listing faults and a trace waveform. The high-performance mini-OTDR has a large 7" screen while staying within the size of a B5 file and weighing in at only 3.2 kg.
The MW9070B is designed with a wide dynamic range and short dead zone and is indispensable for detecting faults in optical trunk lines, subscriber lines, optical CATV cables, optical LANs, and other types of fiber optic cables. In addition, it is also invaluable in measuring transmission line losses, connection losses, return loss, and other parameters. Six optical units are available, depending on the wavelength and type of optical fiber, making the MW9070B an economic choice for a wide range of applications.
* Compact (smaller than footprint), lightweight (3.2 kg)
* Simple operation with automated fault measurement
* Simultaneous waveform trace and event table display on large LCD
* Built-in 3.5 inch FDD (optional)
* Wide dynamic range: 41.5/39.5 dB (MW0972C)
* Short dead zone (MW0972C): 3 m (fresnel), 8 m (back-scattered)
* High-speed real-time sweep to check fiber connections
* Manual operation for novice and experienced operation
* Visual LD light source (option for units)
* Emulation software runs on any personal computer under Windows environment (sold separately)
* There are both Singlemode and Multimode Optical Units available
1310/1550 30 nm (typical: 15/20 nm)
FC, ST, DIN, SC, DIAMOND (HMS-10/A)
20, 50, 100, 500, 1000, 2000, 4000, 10000
36 dB at 1.31 m 34 dB at 1.55 m
22 dB at 1.31 m (typical: 25 dB), 20 dB at 1.55 m (typical: 23 dB)
Distance measurements: 2 m (10 4 x distance) marker resolution *Excluding uncertainly caused by fiber IOR Loss measurements (linearity): 0.05 dB/dB or 0.1 dB (whichever greater) Return loss measurements: 4 dB
