88 ton 98.6" bed amada rg-80 press brake

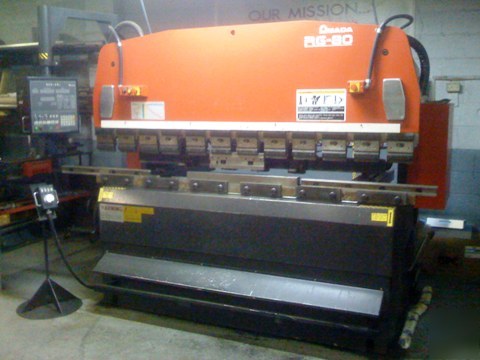

88 Ton 98.6" Bed Amada RG-80 PRESS BRAKE
1997 Amada RG 80 Brake w/NC9EX2 CNC Back Gauge
Clearance Between Beams (Open Height) - 14.57"
Distance Between Side Frames - 80.71"
Machine Dimensions - Overall Height - 90.55"
- Designed specifically to enhance computer control
- Centralized controls provide quick, easy control of tonnage, bending depth
- Strategic placement of the cylinders creates an ideal deflection curve,
eliminating the need to shim precision tooling. Angular accuracy is
constant over the full part length
- Roller guiding system eliminates all ram/guide freeplay and wear.
- Tonnage limiter and gauge protect tooling and increase safety.
- Exclusive handwheel depth control simplifies set-up and reduces
- Sectionalized punch holders allow deep box forming and can create
windows for long return flanges.
- Smooth throttle action pedal increases operator control and safety.
3 Axis Amada CNC Backgauge System NC9EX2
