4248 wells-index model 847 ram & turret vertical mill

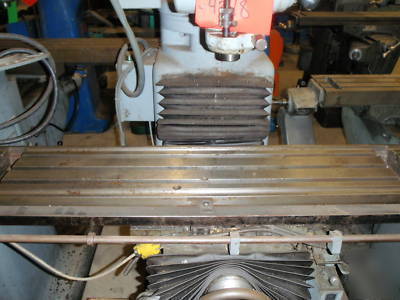

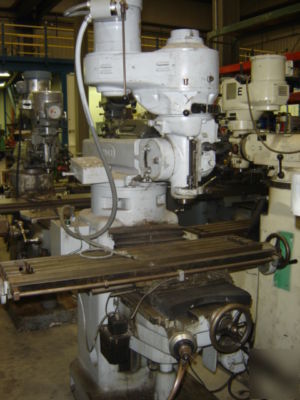

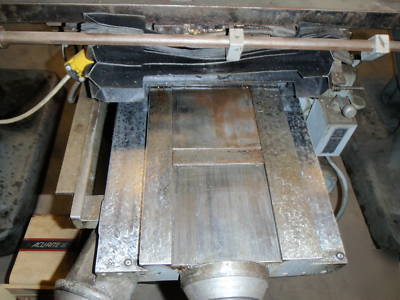

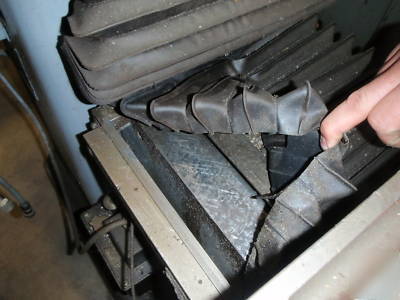

WELLS-INDEX MODEL 847 RAM & TURRET VERTICAL MILL
Handwheel dial graduations .001
Distance center of spindle to column face, min/max 2 / 28
Distance center of table to column face, min/max 5 / 17
Distance spindle nose to top of table, min/max 0 / 16
Standard spindle speeds (8) 75-2850 rpm
Quill feeds .0015, .003, .006
Turret and overarm rotation 360

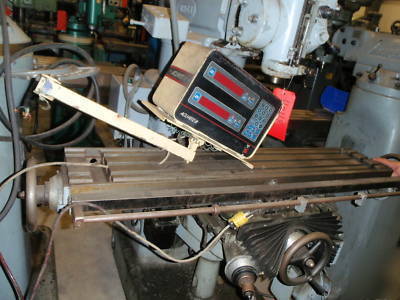

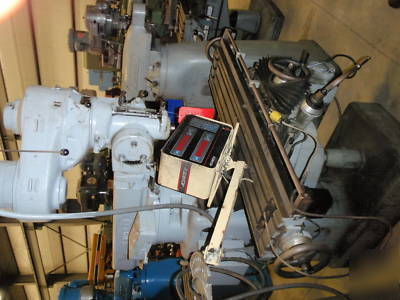

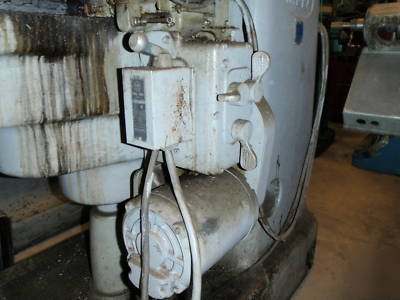

Machine is equipped with power feed and an Acu-Rite DRO.
