25" cleereman dc-25 heavy duty power feed drill

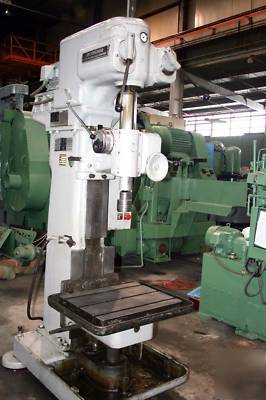

25" CLEEREMAN DC-25 HEAVY DUTY POWER FEED DRILLING MACHINE
Distance, spindle to column 12.5"
Distance, spindle to base, maximum 46"
Distance, spindle to base, minimum 16"
Adjustment of Sliding Head 18"
Spindle Feeds (In Thousandths per Rev.) 2.3 - 23
Motor driven with 5 HP, 3 phase, 60 cycle, 460 volt drive. Complete electrical controls. Power quill feed. Direct acting lever controls for speeds & feeds. 19" x 24" t-slotted single adjustable height work table. Coolant. 12" Vise. Miscellaneous drill holders. Hold down straps.
