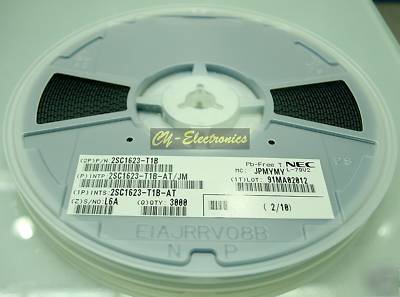

150 pcs 2SC1623-T1B smd npn transistor L6 nec
Type: 2SC1623-T1B , NPN Silicon Epitaxial Transistor
hFE = 200 TYP. (VCE = 6.0 V, IC = 1.0 mA)
Maximum Voltages and Current (TA = 25 C)
Collector to Base Voltage VCBO 60 V
Collector to Emitter Voltage VCEO 50 V
Emitter to Base Voltage VEBO 5.0 V
Collector Current (DC) IC 100 mA
at 25 C Ambient Temperature PT 200 mW
Junction Temperature Tj 150 C
Storage Temperature Range Tstg 55 to +150 C
