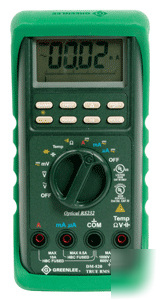

Greenlee dm-820 industrial rms digital multimeter DM820
Autoranging, 3-5/6-digit, 5000-count display for greater accuracy.
Frequency and capacitance measurements plus diode and continuity tests standard.
Data hold to capture measurements.
RS-232 capable, may be connected to a PC for extended measurement capability with optional optically isolated interface DMSC-8L or DMSC-9, purchased separately.
Low ohm range calibration, subtracts test lead resistance.
Backlit display for easy viewing.
True RMS for no-compromise accuracy.
Record max, min and max-min readings.
Crest capture (5ms peak hold) max, min and max-min readings.
Relative offset display mode to see relative changes in measurements.
Temperature measurement standard.
Accessories included: (1) 9V battery, protective boot, carrying case (DM-820, DM-810), bead temperature probe (DM-820 only, 400 F/204 C max), test leads.
Voltage Measurement 50.00, 500.0mV; 5.000, 50.00, 500.0, 1000V
Amperage Measurement 500.0, 5000 A; 50.00, 500.0mA; 5.000, 10.00A
Resistance 50.00, 500.0 ; 5.000, 50.00, 500.0k ; 5.000, 50.00M
Capacitance 50.00, 500.0nF; 5.000, 50.00, 500.0, 9999 F
Temperature K type, -58 F to 1832 F (-50 C to 1000 C)
Measurement Category CAT IV, 600V; CAT III 1000V
