Elliptical bargraph panel meter by modutec

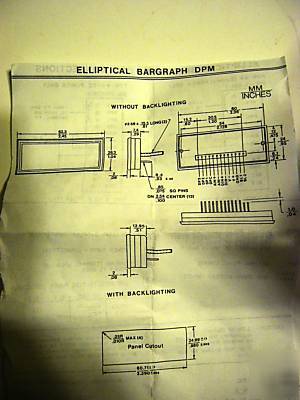

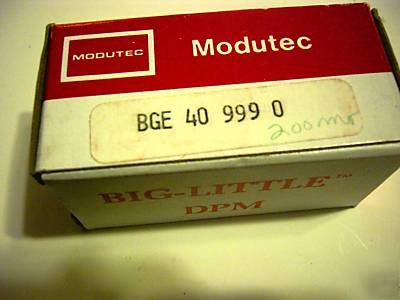

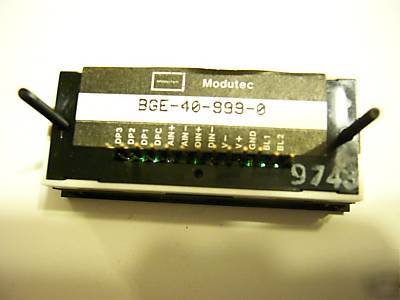

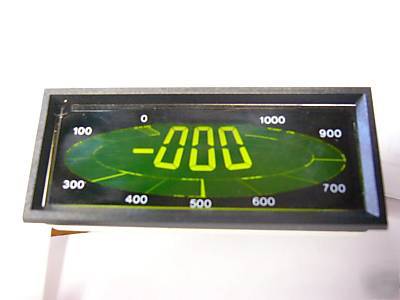

MODUTEC DIGITAL PANEL METER WITH ELLIPTICAL BAR GRAPH AND A 3 DIGIT READOUT WITH FULL SCALE 999 DISPLAY.
THE DECIMAL POINT IS PROGRAMMABLE TO ANY POSITION.

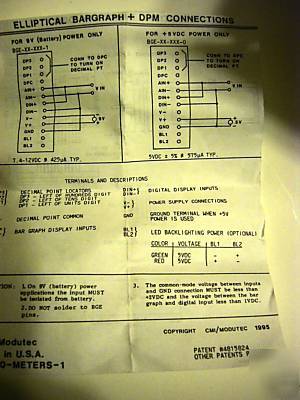

THE BAR GRAPH AND DIGITAL READOUT ARE TWO INDEPENDENT CIRCUITS AND CAN MEASURE TWO INDEPENDENT INPUTS OR THEY CAN BE CONNECTED TO THE SAME INPUT.
TYPE: TRUE DIFFERENTIAL INPUTS.
COMMON MODE VOLTAGE: -200MV, +2V PEAK MAX BETWEEN INPUTS AND GND CONNECTION, 1V PEAK MAX BETWEEN BAR GRAPH AND DIGITAL INPUTS.
CONVERSION RATE: 25/SEC TYPICAL
ACCURACY: 1% OF FULL SCALE +/- 1 BAR TYPICAL.
1.5% OF FULL SCALE +/- 1 BAR MAX.
AVERAGE BIAS CURRENT: 1.3 nA typ. 3 nA MAX
TEMP. COEF.: 200ppm PER DEGREE C.
MAX DIFFERENTIAL VOLTAGE: 250VDC OR 150VAC
CONVERSION RATE: 2.5/SEC TYPICAL
DIGITS: 3 DIGITS, 7 SEGMENTS (+/- 999) , 0.34 HIGH
ACCURACY: 0.1% OF FULL SCALE +/- 1 COUNT TYPICAL.
0.25% OF FULL SCALE +/- 1 COUNT MAX
BIAS CURRENT: 1Pa typical 10 pA MAX.

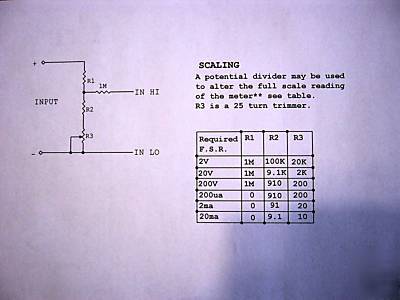

THE METER CAN BE SCALED TO READ ALMOST ANY VOLTAGE. PICTURE NUMBER 6 SHOWS SOME EXAMPLES OF SCALING THAT COULD BE USED.
