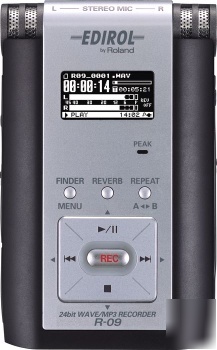

Edirol by roland r-09 24-bit wave/MP3 recorder
Edirol R-09 24-Bit Wave/MP3 Recorder Specifications:
* Audio Inputs Internal Stereo Microphone, Mic input (Stereo miniature phone type, plug-in powered mic), Line input (Stereo miniature phone type)
* *The Internal/External MIC and the Line input can't be used at the same time; only the Line input is effective.
* Audio Outputs: Phones* (Stereo miniature phone type), Digital Out Connector* (Optical miniature phone type) *Phones and Digital Out use a common jack.
* Nominal Input Level (Variable): Mic Input: -36 dBu (Default input level), Line Input: 0 dBu (Default input level)
* Input Impedance: Mic input: 20 k ohms, Line input: 17 k ohms
* Frequency Response: 20 Hz to 22 kHz
* USB Interface: Mini-B type connector (support USB 2.0/1.1 mass storage device class)
* Effects: Playback Reverb: 3 types (Hall1, Hall2, Room, Plate)
* Display: 120 x 64 dots OLED (Organic Light Emitting Diode) Graphic Display
* Power Supply: AC Adaptor, Alkaline dry battery LR6 (AA) type x 2, or Nickel Hydrogen battery (HR15/51)
* Accessories: Owner's Manual, AC Adaptor (PSB-6U), SD Memory Card (64 M bytes), USB Cable (Mini-B type)
* Dimensions (W x H x D): 2-1/2" x 1-3/16" x 4-1/16"
* Weight: 0 lbs. 6 oz, 0.1 kg
Edirol R-09 24-Bit Wave/MP3 Recorder Features:
* 24-bit/48kHz (or 44.1kHz) linear PCM recording
* Ultra portable, half the size of the R-1
* Up to 320 kbps MP3 recording
* Isolated Adaptive Recording Circuit (I.A.R.C.)
* High-grade stereo condenser microphone built in
* High speed file transfer via USB 2.0 connection to computer
* Easy operation, user-friendly graphic display
* Long battery life (4 hour recording with AA alkaline type x 2)
Original Manual has been misplaced, included is an online print-out. Recorder never been used. Currently retails at $450.00.
