Eagle SHT5-ng hot food table, 5 wells, 79" length, natu

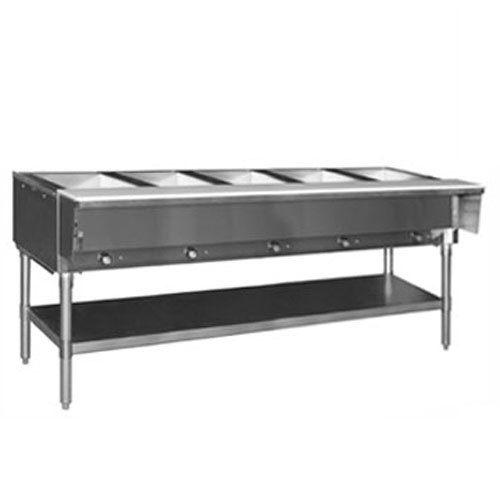

Hot Food Table, 5 Wells, 79" Length, Natural Gas, Stainless Undershelf and Legs
Hot Food Table, Natural Gas, 79" L, (5) 12" x 20" (dry) wells with burner controls in recessed panel, s/s top with 8" poly cutting board, s/s undershelf & tubular legs, adjustable feet, 17,500 BTU
* Individual controls for peak performance
* High-output jet burners for efficient operation
* Adaptable for wet application
* Recessed controls for improved protection and safety
* Body and top constructed of highly polished 22 gauge 430 series stainless steel
* Top features die-stamped beaded openings measuring 12 3/32" x 20 3/32"
* A poly cutting board 8" wide and 1/2" thick is mounted on stainless steel
* brackets located on control side of unit
* Legs are 1 5/8" tubing fitted with non-marking plastic feet
* Under each top opening is a heat compartment with a die-stamped 8" deep, heavy gauge galvanized liner
* Each compartment is insulated on all four sides and bottom with 1" thick fiberglass, or equal, having a thermal conductivity of 0.27 or less
* Gas heat units Each compartment features an individual burner rated at 3,500 BTU designed for use with natural gas or propane gas as specified Each burner is controlled by a High-Medium-Low adjustable gas valve with adjustable pilot light
* A removable galvanized steel radiation plate is also provided in each compartment and a gas pressure regulator is furnished with all units
