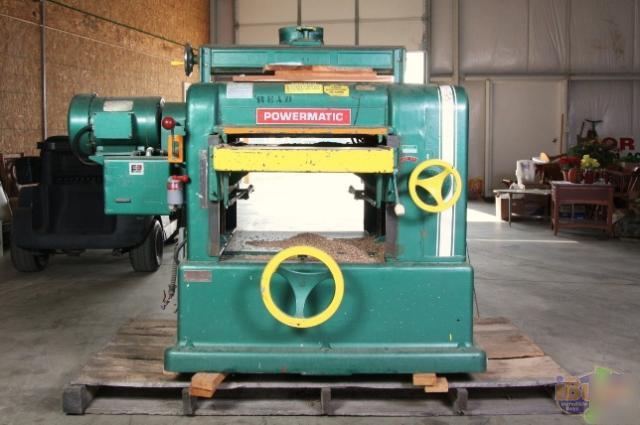

Powermatic wood planer model 225 24" x 8" industrial~
Powermatic Wood Planer Model 225 24" x 8" Industrial~
THIS ITEM HAS BEEN TESTED, and is in GOOD WORKING CONDITION, Guaranteed!!!!
* Motor: Leeson 10 HP, 3500 RPM
* Capacity for planing: 8" High Max x 24" Width Max
* Frame machined from extra heavy cast iron
* Extra wide side panels with gibs offer rigid bed support and accurate alignment
* 24" x 48" (609.60 mm x 1219.20 mm) bed accurately machined with extra heavy rib reinforcing for alignment and maximum strength
* Bed surface finish ground from a one-piece casting
* Bed raises and lowers on large acme-thread screw mounted on enclosed thrust bearings
* Convenient handwheel adjusts bed through full 8" (203.20 mm) range
* Safety-type milled slots, precision ground and balanced, fitted with 4 high-speed heat treated tool steel knives, 5/32" x 1-1/4" x 24" (3.97 x 31.75 x 609.6 mm)
* Mounted in oversized, sealed ball bearings
* 4-3/8" (111.12 mm) cutting circle
* Corrugated 4" (101.60 mm) diameter infeed roller, 2" (50.8 mm) cast iron sections mounted on milled alloy steel spline shaft
* Reversible without damage to the springs on 3 phase motors only
* Smooth outfeed roll, 4" (101.6 mm) diameter solid type
* Two adjustable table rolls, 4" (101.60 mm) diameter Power Driven rolls
* Pressure bar mounted concentric to cutterhead and fitted extremely close to knife-cutting circle
* The bar has extra wide foot for long wear
* 2" (50.8 mm) ductile iron chipbreaker, sectional type with independent 1/4" (6.35 mm yield. Sections are mounted on a steel bar just forward of the knife-cutting circle and swing concentric to the cutterhead
* Variable speed pulley affords complete range of feed from 20 to 100 feet per minute (101.6 to 508 mm/s)
* Driven with 1-1/2 HP (1.119 kw) totally enclosed motor mounted in machine base
* 7-1/2 HP (5.6 kw) motor is recommended for light and medium work loads
* For extra heavy and high production requirements, the 10 to 15 HP (7.46 to 11.19 kw) motor is recommended
* Machine standard equipped with magnetic controls protecting both feed and drive motors. With this safety feature both motors shut off instantly in the event of overload, low voltage or power failure. Motors will not restart until activated by the operator.
* Set of 4 high-speed, heat treated tool steel knives
* 4 knife round cutterhead mounted in sealed ball bearings
* Motor pulley, belts and belt guard
The new quick change cutterhead for Model 225 Planer increases productivity by greatly reducing costly down time. This new cutterhead design is precision manufactured to allow the knives to be replaced accurately in minutes! Once the knives are in place, adjustments to the infeed and outfeed rollers, the chip breaker, and the pressure bar are not necessary.
To extend the life of the knives, they have two cutting edges. The knives are also impregnated with 18% Tungsten which has proven to increase the life by up to 30%. Reports indicate that 40-60,000 lineal feet per edge is obtainable when planing hardwoods. The design also significantly reduces the noise level of the planer.
