Magerle creep feed horizontal surface grinder

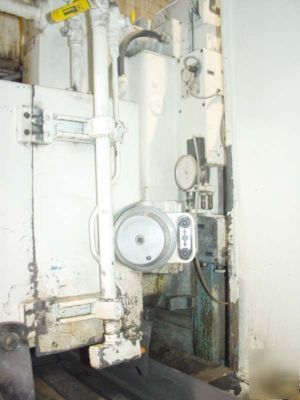

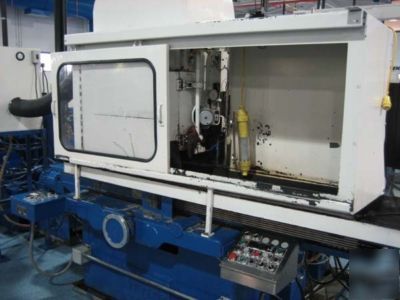

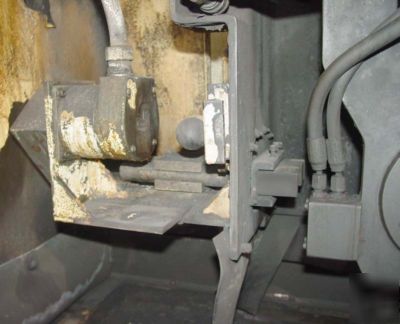

9-1/2" x 40" MAGERLE CREEP FEED HORIZONTAL SURFACE GRINDER
Model SFPA-10-S4, New 1985, S/N 1357

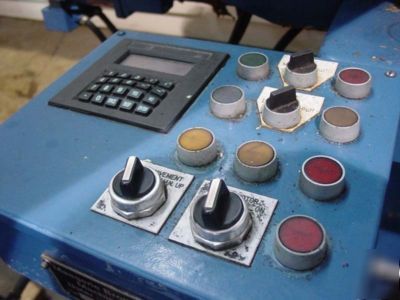

Stock # K12756 EQUIPPED WITH: Servo Table Infeed with Controller, Rough and Finish Grinding Cycles,

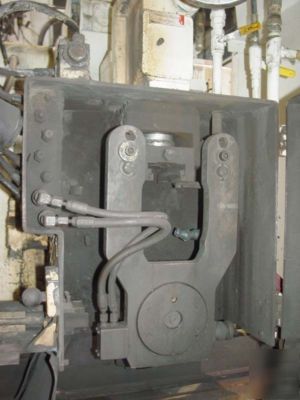

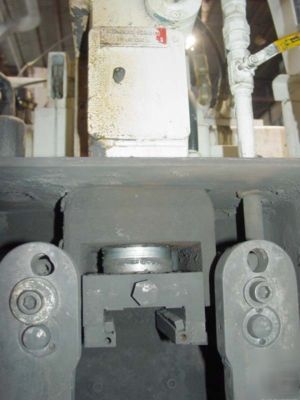

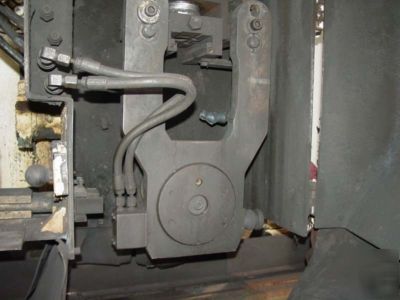

Spindle Load Monitor, Up-Graded ABB Spindle Drive Unit, Diamond Roll
Longitudinal Table Travel .............. 44.48" ( 1130mm)
Maximum Grinding Width ................. 12.59" ( 320mm)
Cross Travel of Table................... 10.62" ( 270mm)
Vertical Travel of Wheel................ 18.50" ( 470mm)
Max Height Under a New Wheel............ 23.62" ( 600mm)
Grinding Wheel Standard Diameter........ 11.81" ( 300mm)
Grinding Wheel Max Diameter............. 15,74" ( 400mm)
Grinding Wheel Width, Standard.......... 3.93" ( 100mm)
Grinding Wheel Bore..................... 5" ( 137mm)
Grinding Wheel Motor.................... 40 HP ( 30.8 KW)

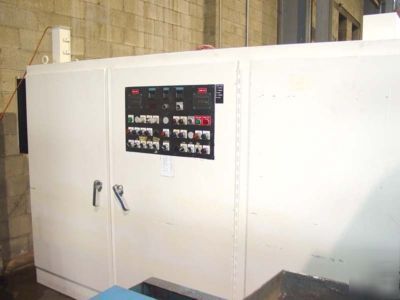

Electrics (Dual Voltage)................ 240/3/60
Approximate Machine Dimensions.......... 137.5" x 95"
Approximate Machine Height.............. 89"
